NSA 171

Climatised precipitation sampler for mercury

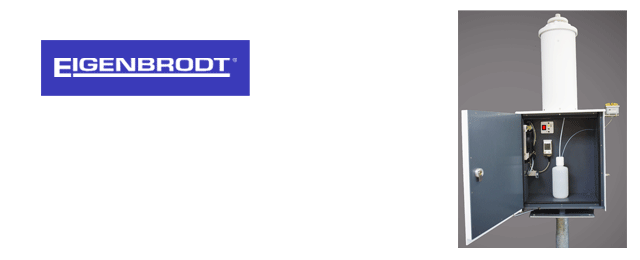

NSA 171 - Climatised precipitation sampler for mercury

Key benefits

  • Suitable for GMOS specifications
  • Suitable for DIN EN 15853 for collecting mercury in precipitation
  • Integrated cooling and heating capacity and insulated housing
  • Easy to service
  • Funnel 100 alt. 125mm (to be chosen with order) allowing bottle capacity of 254mm precipitation (@ 100mm funnel)
  • Contact material: PTFE and borosilicate glass

Description

The precipitation sampler is used for the purpose of collecting the precipitation into a large single sample bottle. The individual sample bottle can be easily removed from the apparatus at the end of the period of measurement for laboratory analysis. Every single component which is used for measurement is made out of chemically neutral material and placed in a thermally insulated housing. At high temperatures the housing is cooled automatically (optional) to avoid overheating from intense radiation of the sun. For winter operation an electronically controlled funnel heating and a heating for the sample room are provided.


Scope of supply

  • Double walled insulated PVC housing
  • Collection funnel out of borosilicate-glass diameter 100mm alt. 125mm
  • Control electronics for drive for lid
  • Heating for funnel
  • Thermoelectric heating/cooling system for sample bottles
  • Precipitation sensor RS 85
  • Sample bottle out of borosilicate-glass (others on request)

Options available

  • Sample bottle out of glass or PETG
  • Collection funnel diameter 100mm or 125mm
  • Opto-electronical Precipitation Sensor IRSS 88
  • Precipitation Sensor NRS 80 or RS 85 OP for areas without snow
  • Dry sample container out of PE or DURAN-glass
  • LCD-hour meter
  • Data logging systems
  • Stand base, made of galvanized steel
